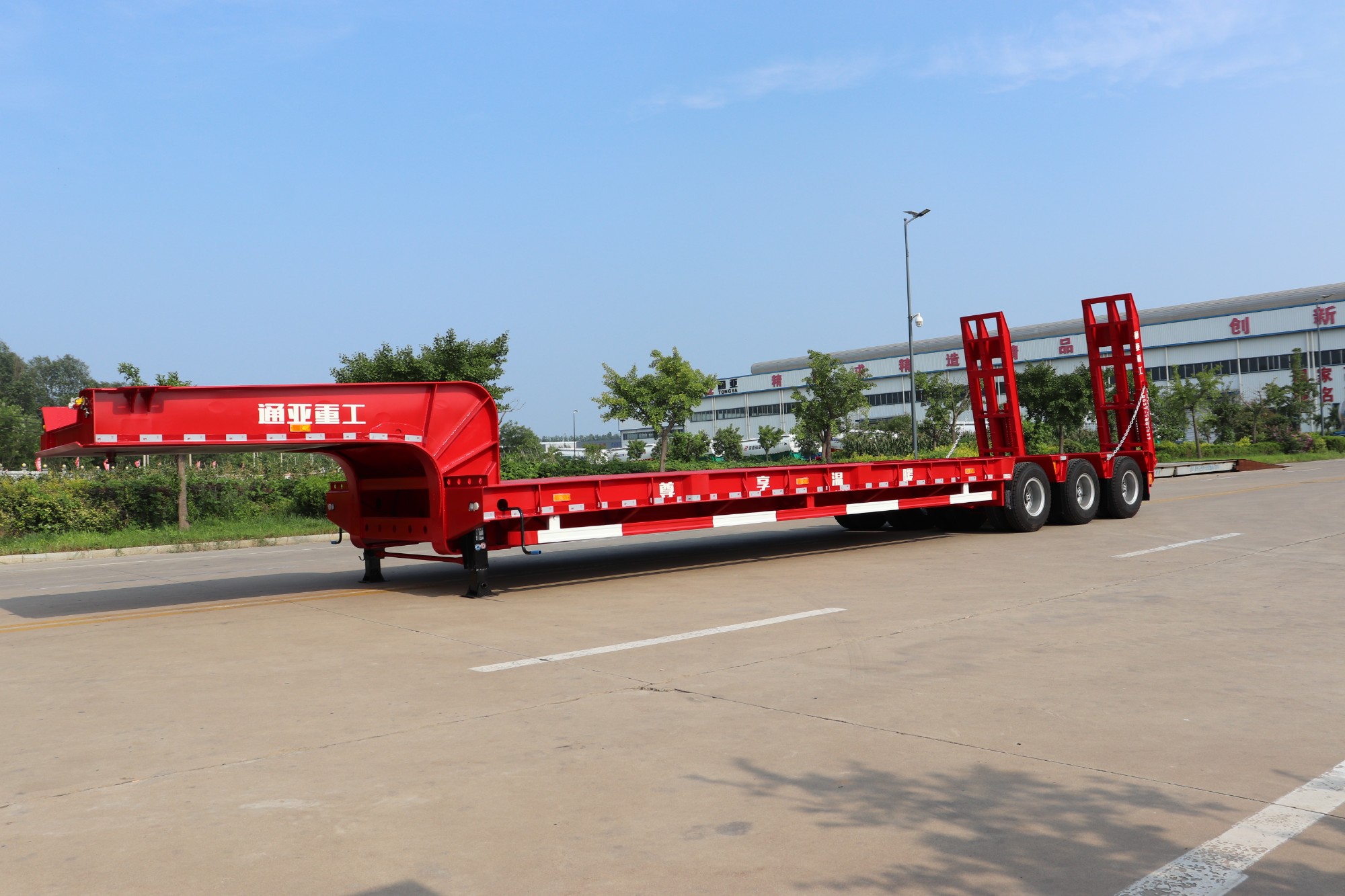

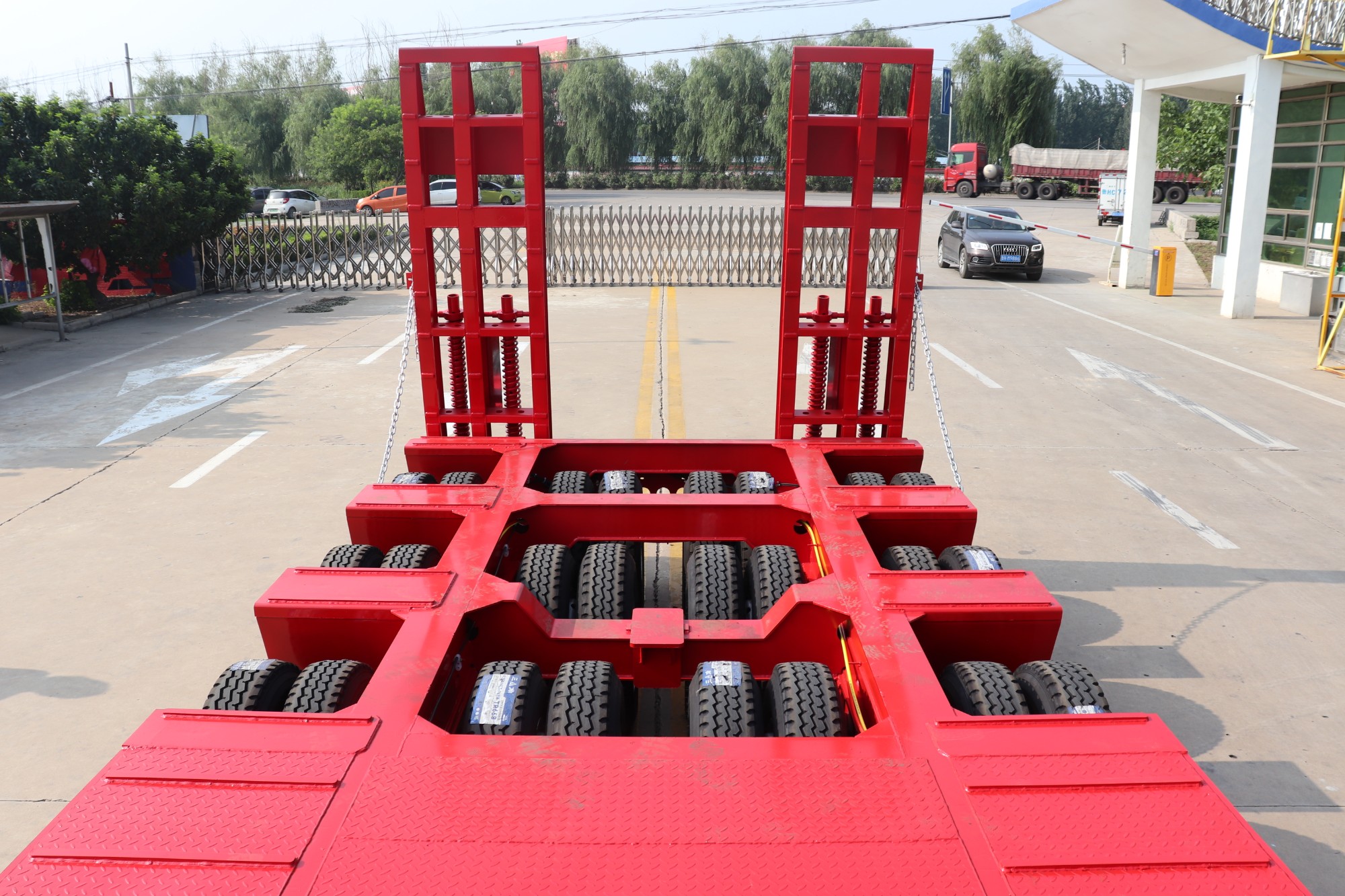

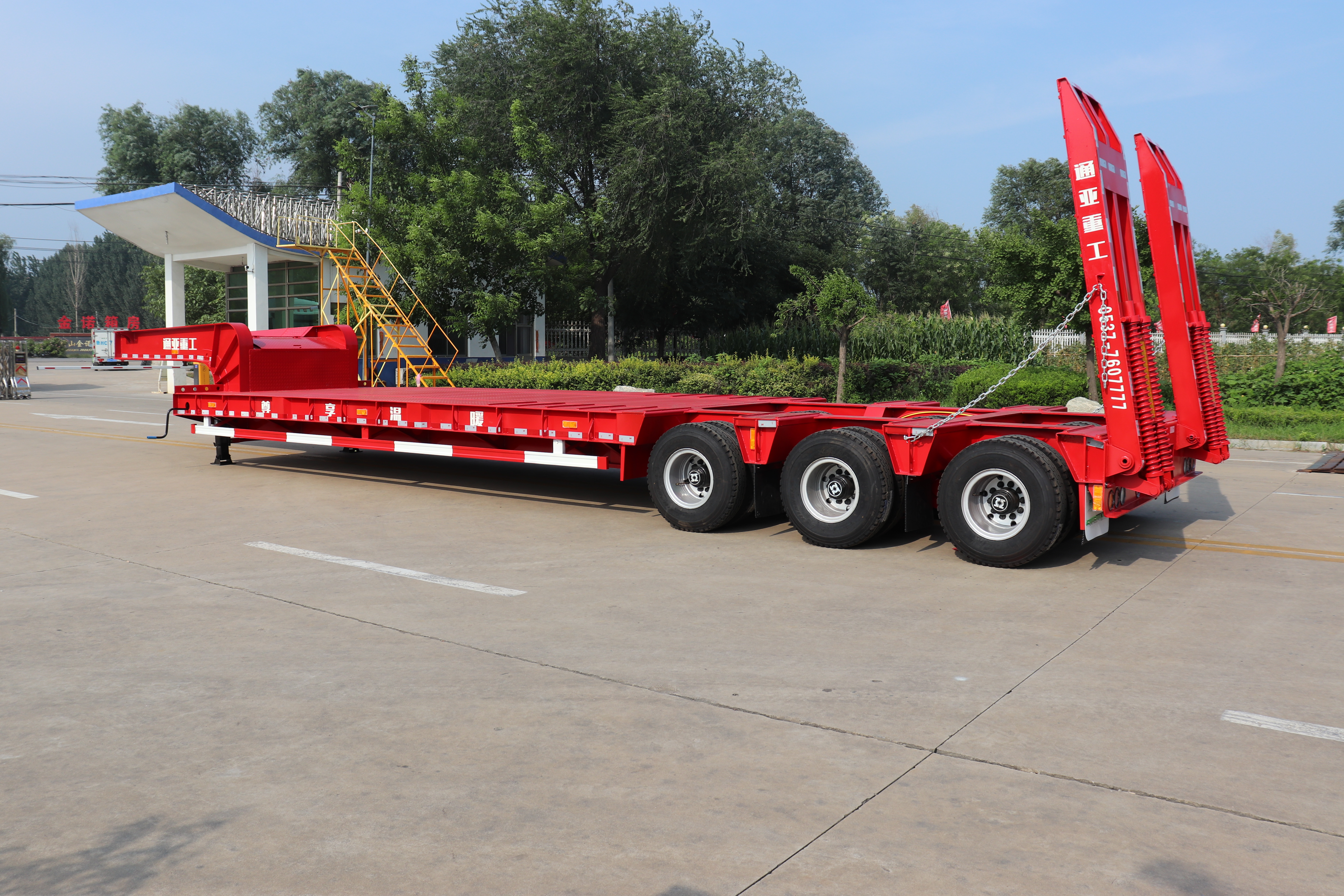

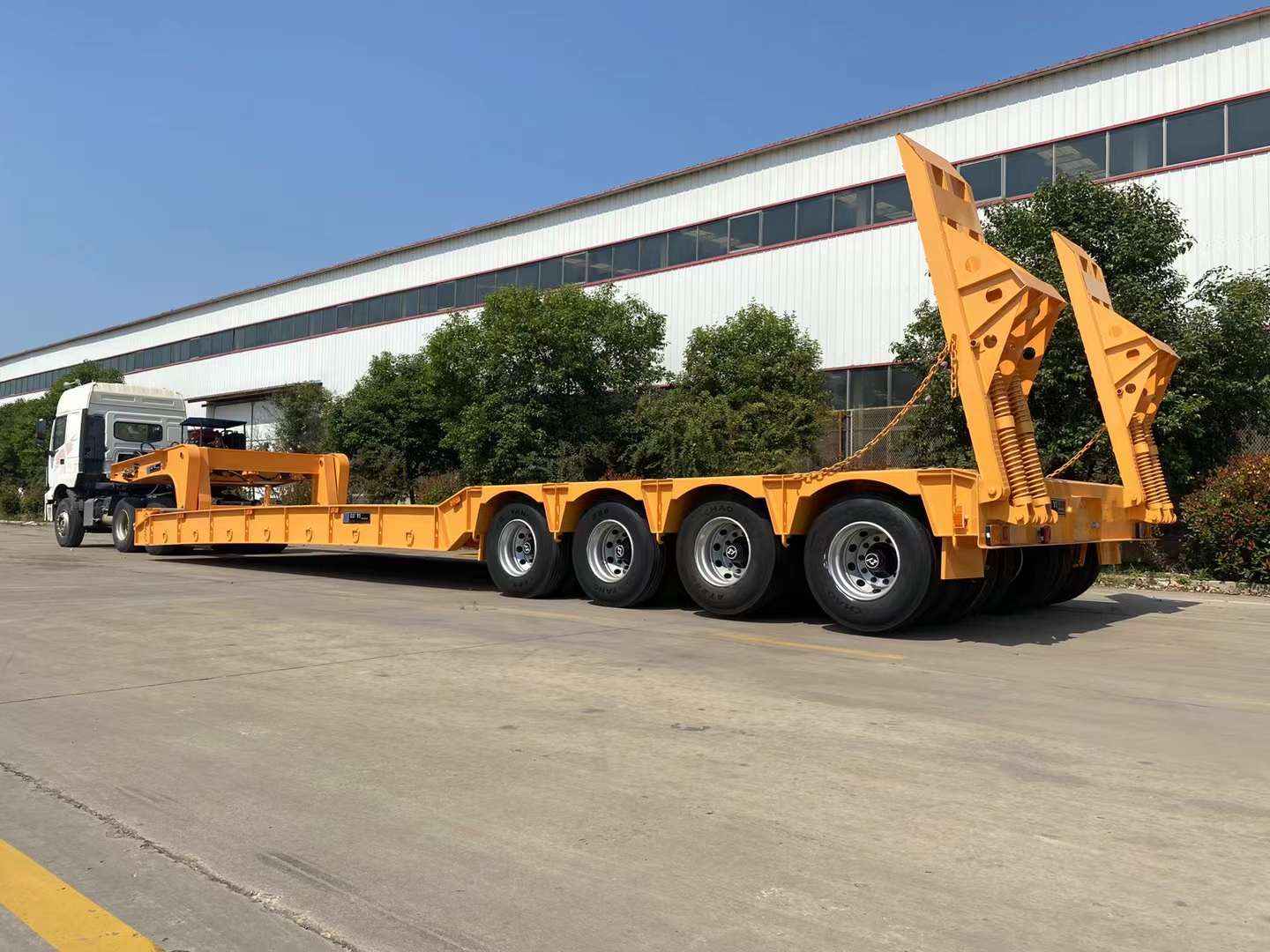

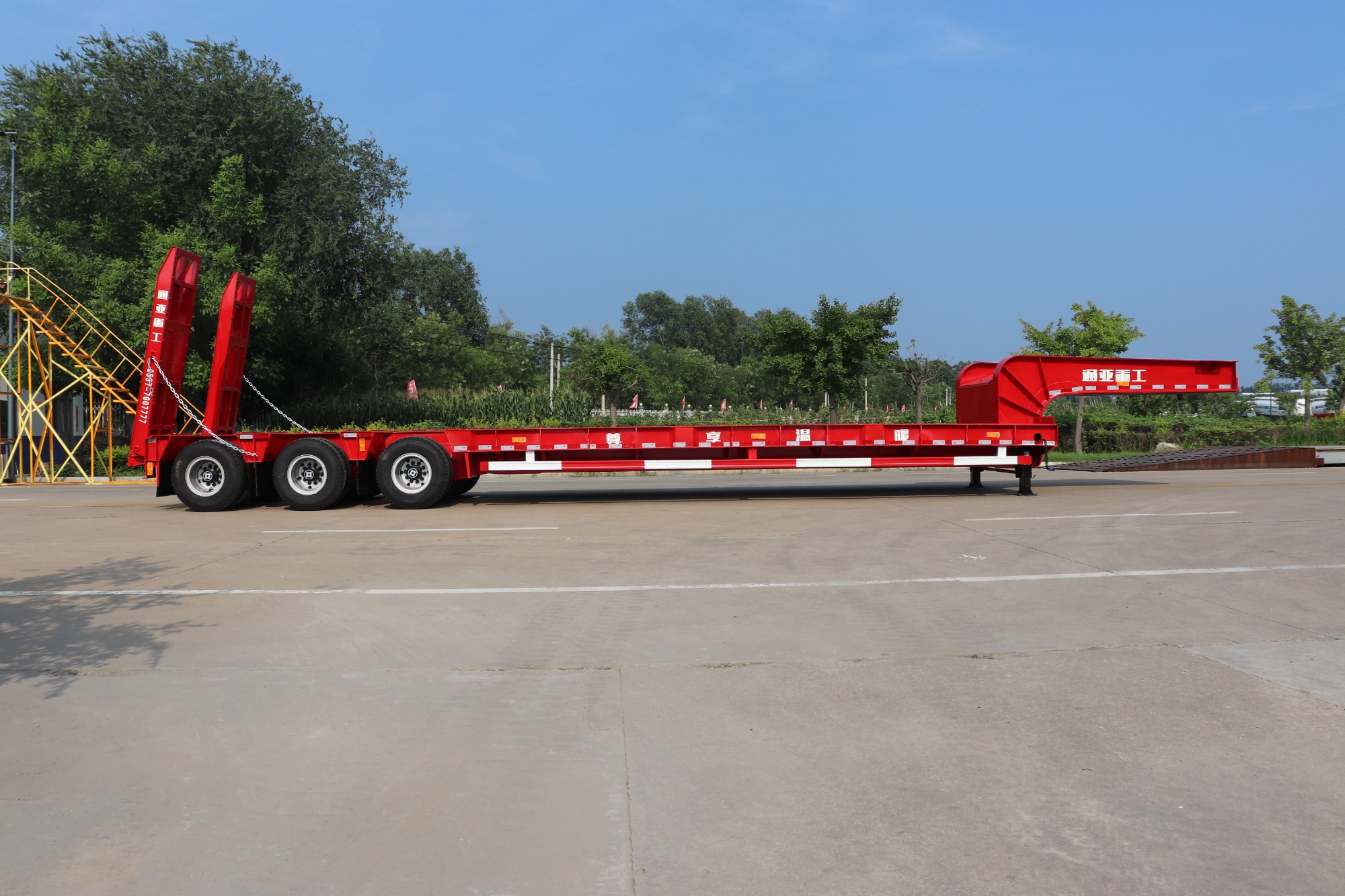

Low-bed Semi Trailer

Description

High Duty 3 AXLE/ 4 AXLE GOOSENECK TYPE LOWBED SEMI TRAILER

I	Model			Dimension:13000*3000			Structure &Spraying			Note
				AXLE:FUWA 13T*3(2180)			Gooseneck low bed type Spray the powder			No ABS, 1 tool box 1 spare tyre carrier
				RIM:9.0-22.5*12
				TRACTION PIN:90# assembly type
				Air Chamber:4 double 2 single
				Spring & Suspension:10 leafts & mechnical suspension
				Cross beam:400-520mm,14*8*16mm
				Side beam:16# U-steel
	gooseneck low bed semi triler			Flatbed:3mm steel
				Through beam is a large bending piece
				Accessory: a mechnical ladder

Use:

Truck Trailer

Type:

Semi-Trailer

Material:

Steel

Size:

18000*3400*1650mm

Max Payload:

100ton

Place of Origin:

Shandong, China

Brand Name:

Tonghua Brand

Loading type:

Front loading lowbed trailer

Dimension:

L18000*W3400*H1650mm

Loading platform length:

10m

Loading Capacity:

100T

Axle weight load:

4 XD Axle

Suspension:

heavy duty design,thicken

King Pin:

2" or 3.5" traction pin JOST brand

Tire ape:

11.00R20 * 16pcs ; Triangle brand

Rim:

16 pcs 8.0-20

Brake Valve:

WABCO valve,Dual line braking system

Lowbed semi-trailers are usually used to transport heavy vehicles, mining machinery, forestry machinery, construction machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) and other heavy-duty goods.

The lower the center of gravity, the more stable and The better the safety, the stronger the ability to transport ultra-high cargo and pass overhead obstacles.
